Video of Spillback LAM65Q235 lance nozzle

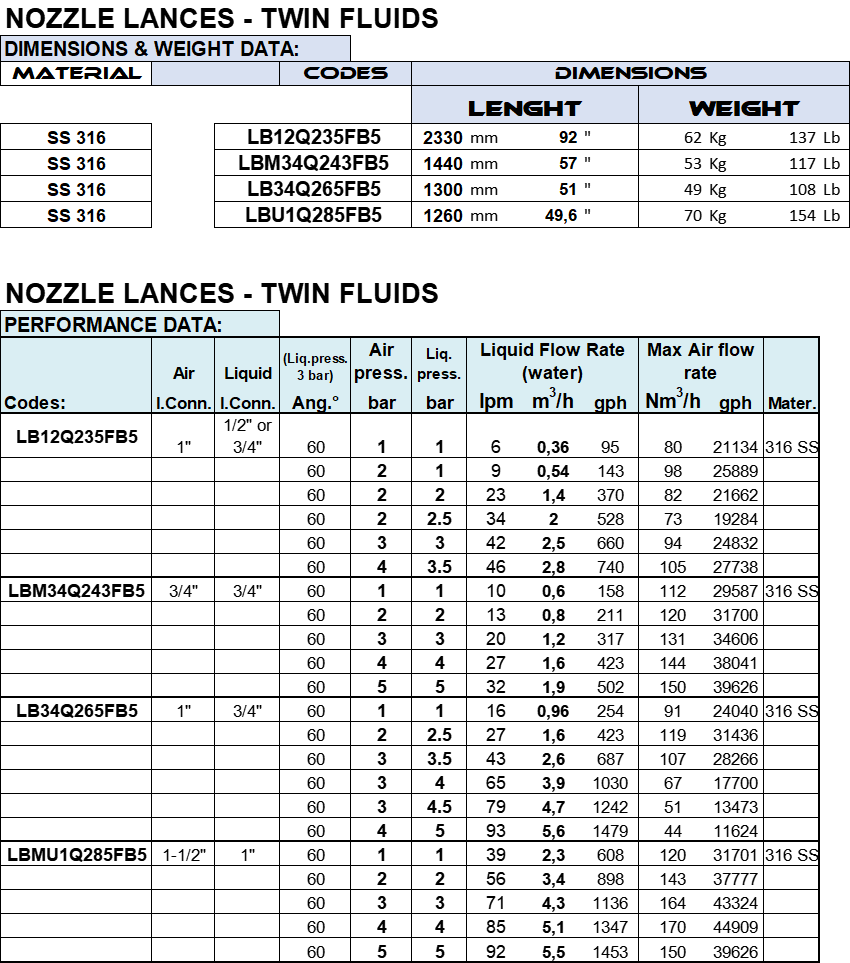

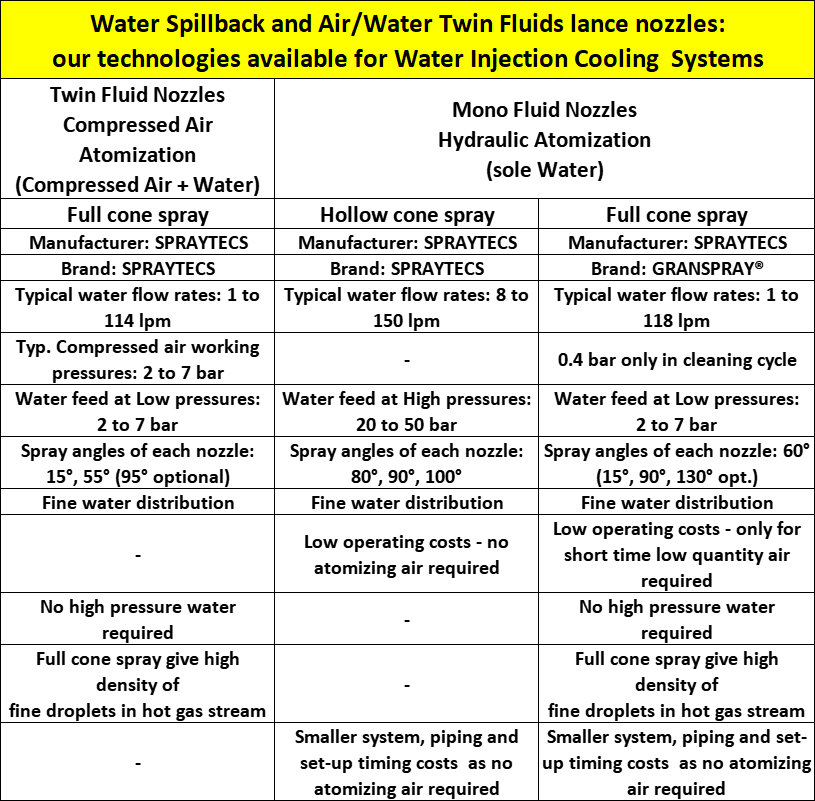

Spillback Nozzle Lances and Traditional water atomization with compressed air (Twin Fluids)
Different technologies for different gas cooling process requirements
Spraytecs Low Pressure GRANSPRAY® spillback lance nozzles and Spraytecs Twin Fluids lance nozzles finely atomize liquids producing full or hollow cone shape, suitable for fume and gas cooling in a wide range of applications, as steelworks, incinerators, cement industry, de-NOx processes, chemical industry and steam cooling.
The evaporation distance of smallest fine droplets by our spillback nozzle orifices start between 1 meters, depending by our lance nozzle model.
We design and manufacture different cooling nozzle lances, customized on client's plant requirements for new installations or revamping.
Discuss with us your tailored key components specialized for continuous cooling special process solution!

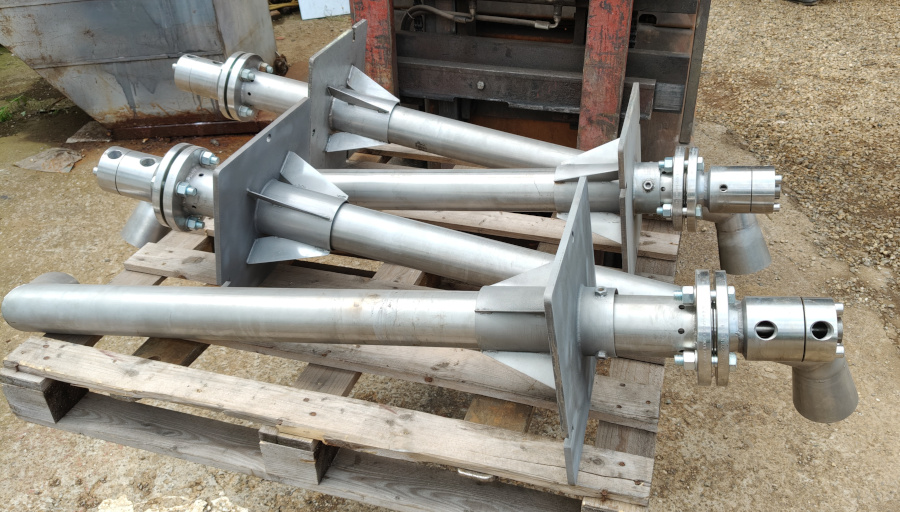

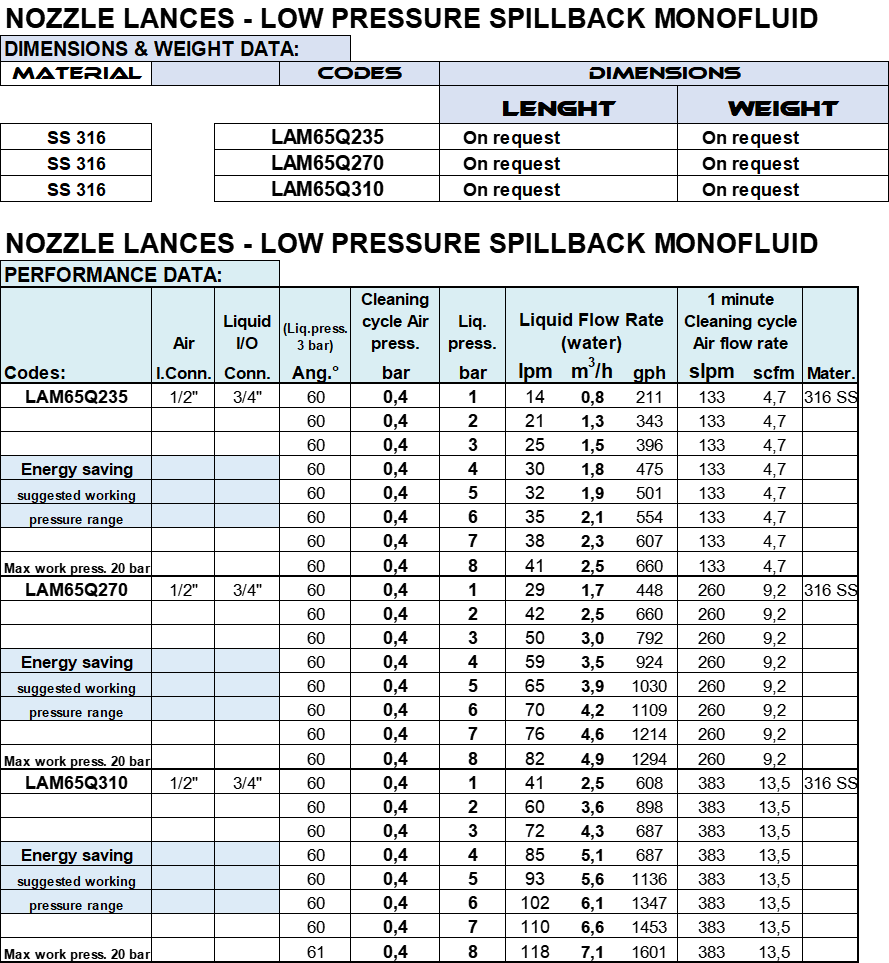

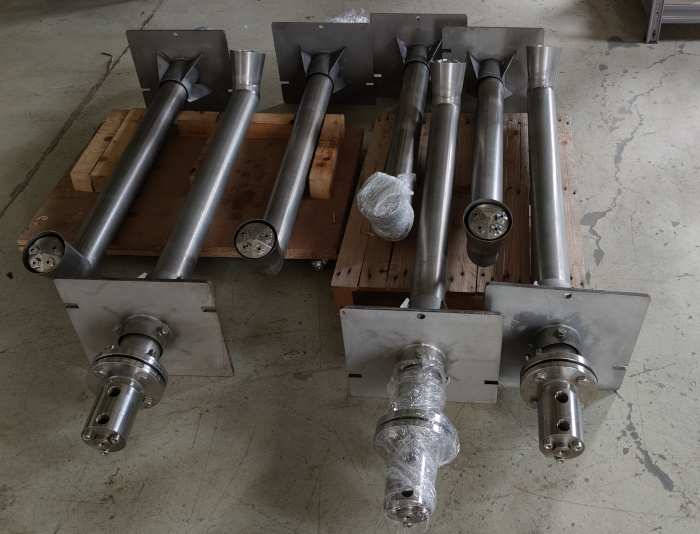

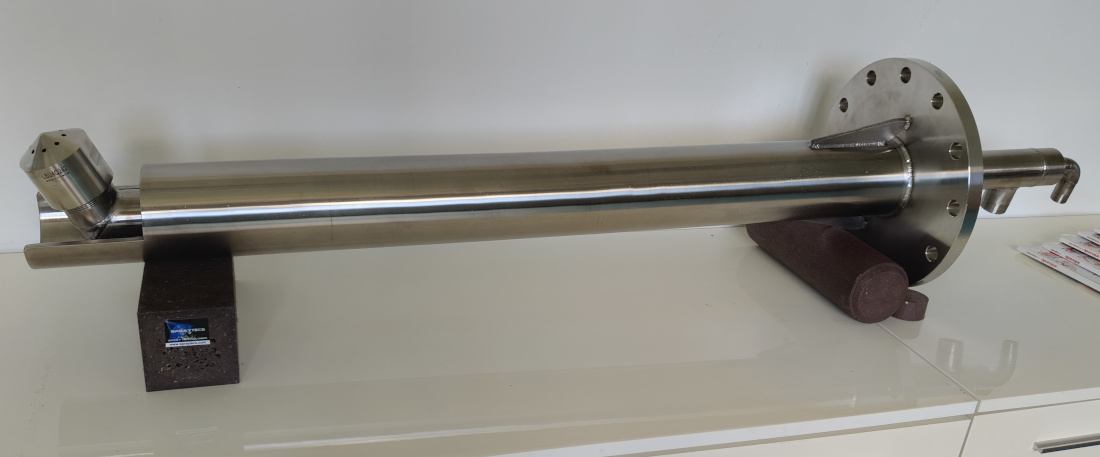

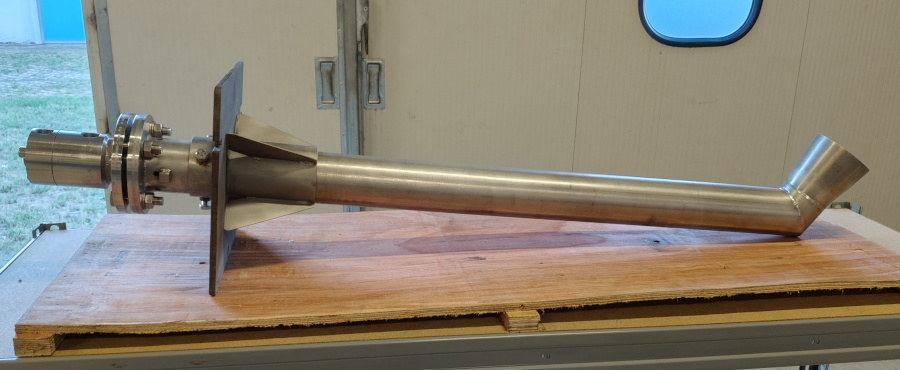

Spillback Nozzle Lances

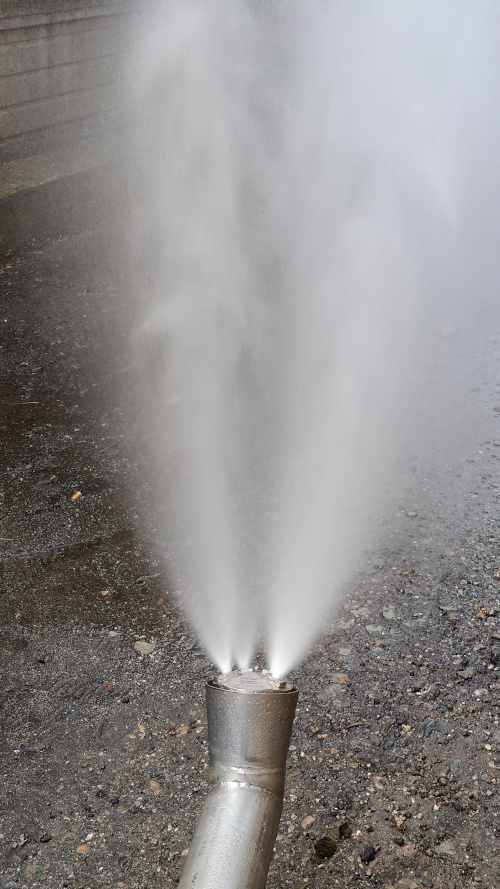

Smallest water atomization at low pressure without compressed air for spraying.
The Evolution of mono-fluid lance nozzles market for high temperature gas cooling!
Spraytecs GRANSPRAY® spillback lance nozzles finely atomize liquids producing a full cone shape, suitable for fume and gas cooling in a wide range of applications, as steelworks, incinerators, cement industry, de-NOx processes, chemical industry and steam cooling.
The evaporation distance of smallest fine droplets by our spillback nozzle orifices start by less than 1 meter, depending by our lance nozzle model.
Talk with us about the possible revamping of your plant as per your requirements based on sole water at low pressure and save your expensive energy charges, reducing your continuous processing system costs.
Contact us!
Technical details
Materials:
Stainless steel 316 and any other material on request.

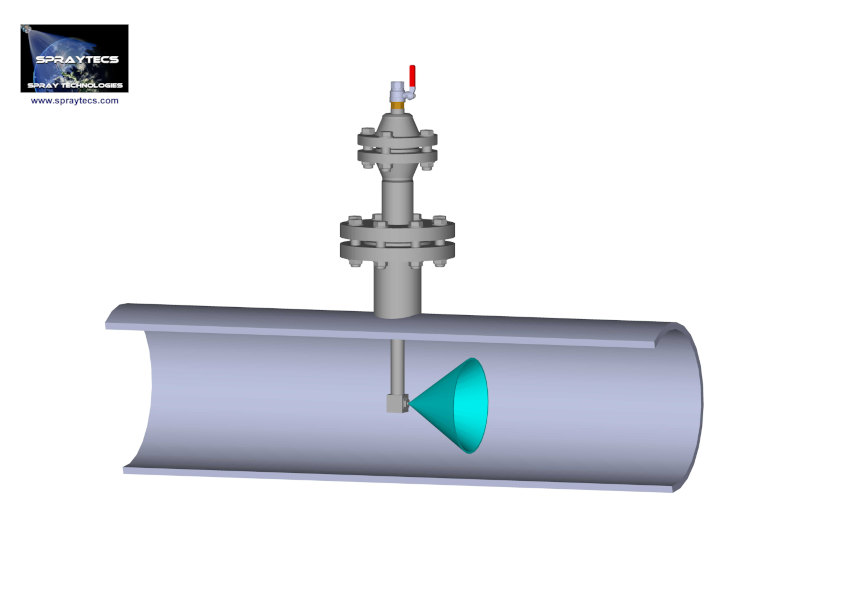

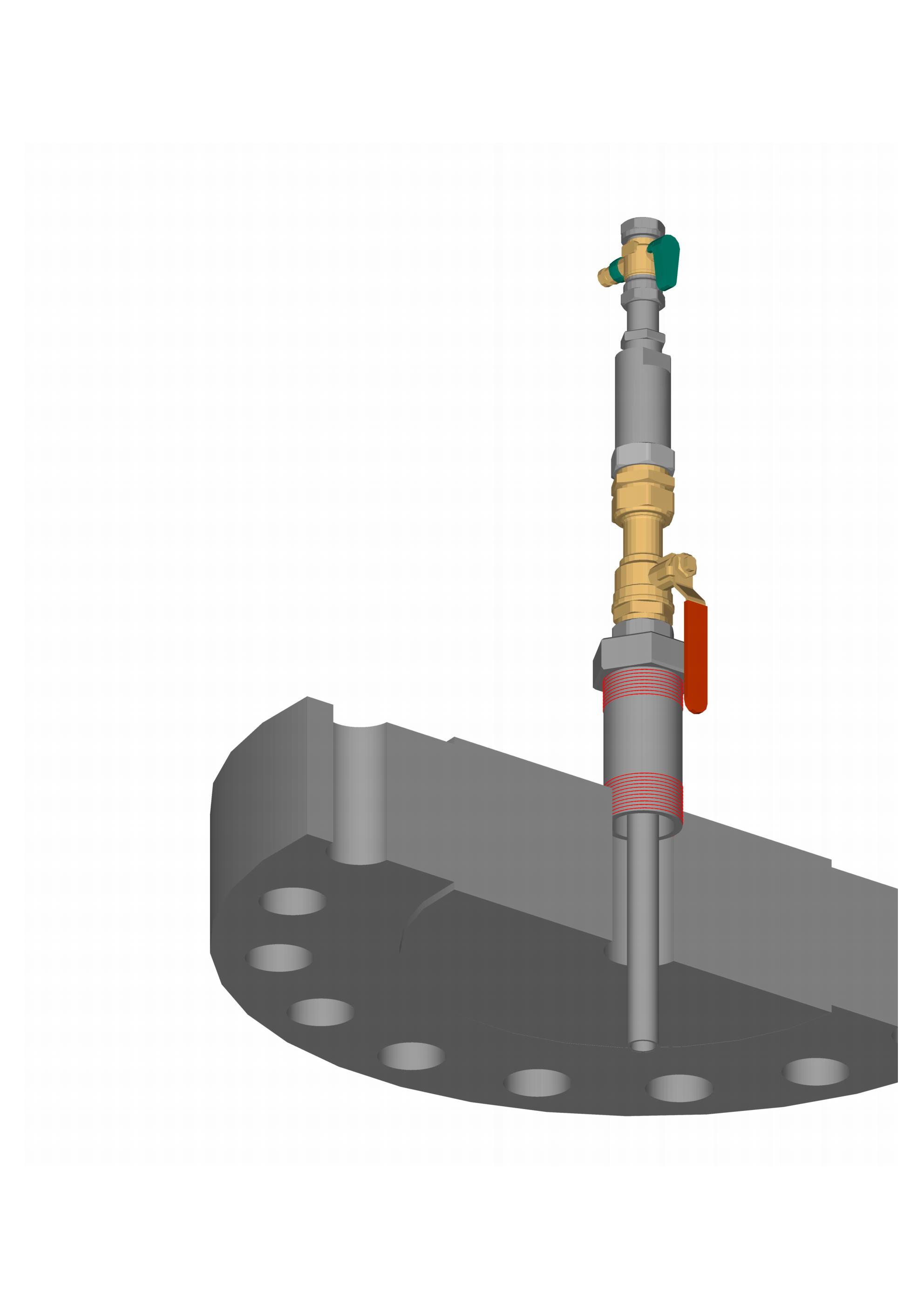

Chemical Injection Nozzle Lances
Design as per your project requirements.
Materials and solutions to face any context required by the client's application.
Spraytec Chemical Injection Lance nozzles are suitable for the managing of chemical processes in a wide range of applications, as chemical industry and gas and oil industry.
The our Chemical Injection Lance nozzles can be realized with many different performances, flow rates, kind of fluids, fixed or retractable lance nozzle, low or high pressures environment, kind of materials and the possibility to realize with any flow rates and materials.
Please send us an email for any info/details on these class of nozzles in case of interest.
For any special version of our gas cooling lance nozzles, or our help in your engineered system, please write us an email with a description of your application, thanks!
Don't forget to consider our filters, after each order, the best partner in your system to escape by clogging conditions of our mist nozzles:
Moreover:
Check with SPRAYTECS for critical dimension, pressure, capacity, fluids quality in your applications, in order to receive support in your decision.
Nozzle materials must meet correctly chemical composition of fluids in your processes, always remember it.
Spray angle performance varies with pressure. Contact SPRAYTECS for specific data on your critical applications.
